Smartphone postural sway and pronator drift tests as measures of neurological disability

Abstract

The COVID-19 pandemic and increased demands for neurologists have inspired the creation of remote, digitalized tests of neurological functions. This study investigates two tests from the Neurological Functional Tests Suite (NeuFun-TS) smartphone application, the “Postural Sway” and “Pronator Drift” tests. These tests capture different domains of postural control and motoric dysfunction in healthy volunteers (n = 13) and people with neurological disorders (n = 68 relapsing–remitting multiple sclerosis [MS]; n = 21 secondary progressive MS; n = 23 primary progressive MS; n = 13 other inflammatory neurological diseases; n = 21 non-inflammatory neurological diseases; n = 4 clinically isolated syndrome; n = 1 radiologically isolated syndrome). Smartphone accelerometer data was transformed into digital biomarkers, which were filtered in the training cohort (~ 80% of subjects) for test–retest reproducibility and correlations with subdomains of neurological examinations and validated imaging biomarkers. The independent validation cohort (~ 20%) determined whether biomarker models outperformed the best single digital biomarkers. Postural sway acceleration magnitude in the eyes closed and feet together stance demonstrated the highest reliability (ICC = 0.706), strongest correlations with age (Pearson r <= 0.82) and clinical and imaging outcomes (r <= 0.65, p < 0.001) and stronger predictive value for sway-relevant neurological disability outcomes than models that aggregated multiple biomarkers (coefficient of determination R² = 0.46 vs 0.38). The pronator drift test only captured cerebellar dysfunction, had less reproducible biomarkers, but provided additive value when combined with postural sway biomarkers into models predicting global scales of neurological disability. In conclusion, a simple 1-min postural sway test accurately measures body oscillations that increase with natural aging and differentiates them from abnormally increased body oscillations in people with neurological disabilities.

Introduction

In the wake of the Coronavirus pandemic, the need for remote patient care is clear. Communication technologies have opened the doors to telemedicine, but hands-on aspects of clinical evaluation remain to be replicated. In particular, neurological examinations could benefit from a remote alternative. Full neurological exams are difficult to complete in busy clinical settings and can be subjective in nature. Consequently, functional tests such as timed-walk tests or the 9-hole peg test have been performed in clinical research to bolster clinician-driven disability scales. Digitalization of these tests offers advantages and some tests have been aggregated into suites adapted for smartphones and tablets [1,2,3,4,5]. To our knowledge, the Neurological Function Tests Suite (NeuFun-TS), which is comprised of sixteen smartphone tests measuring various neurological domains, provides the most comprehensive assessment of nervous system functionality. NeuFun-TS outcomes correlate with Multiple Sclerosis (MS) disability scales, brain magnetic resonance imaging (MRI) data, and targeted subdomains of gold-standard neurological examinations [6, 7]. This study examines the NeuFun-TS Postural Sway and Pronator Drift tests.

The Postural Sway test evaluates human upright stance, which is fundamentally unstable. The brain must continuously integrate multisensory input from visual, vestibular, and proprioceptive systems to maintain balance. Since the mid-twentieth century, postural sway tests have been performed to gain insight into these subsystems. In a typical test, a subject stands in different positions for a short time (e.g., 30 s); positions increase in difficulty by inhibiting sensory input and/or increasing stance instability (i.e., standing on foam, closing eyes) while a force plate or body-worn accelerometer records sway data.

The Pronator Drift test examines sustained supination of outstretched arms (i.e., palms facing upwards) in the absence of visual stimulus. This test records involuntary movements, such as tremors, and stereotypical pronation, elbow flexion and downward drift, which may reveal subclinical motoric dysfunction.

Both tests use a smartphone-embedded accelerometer. While force plates were the gold-standard for measuring postural sway, accelerometers mimic force plate measurements with comparable reliability [8]. Furthermore, accelerometry-derived measurements can differentiate between control groups and people with Parkinson’s Disease, Huntington’s Disease, MS, and other neurological diseases [9,10,11]. Similarly, accelerometry quantifies hand tremor and sway to distinguish healthy subjects from people with Parkinson’s Disease, acute ischemic stroke, and essential tremor [12, 13].

However, while qualitatively distinguishing “healthy volunteers” (HV) from people with identified neurological disease is important, disability exists on a spectrum; more useful digital outcomes quantify neurological disability in a subject with longitudinal accuracy to measure neurological functions agnostically and longitudinally, capable of measuring both disability progression and therapeutic effect. Towards this purpose, some studies correlated postural sway measurements with neurological disability scales, such as the Expanded Disability Status Scale (EDSS) [14]. While EDSS serves as a progression outcome in MS clinical trials, this ordinal scale (ranging from 0–10) is insensitive for most research applications that use smaller patient cohorts because a minority actually progresses on EDSS yearly; e.g., in the ORATORIO clinical trial only 39.3% of primary-progressive MS (PPMS) patients randomized to placebo progressed over 4.2 years of trial duration [15], achieving annual progression rates under 10%. Thus, granular scales like Combinatorial Weight-Adjusted Disability Score (CombiWISE, continuous scale from 0–100) and NeurEx™ (continuous scale from 0 to theoretical maximum of 1349) that strongly correlate with EDSS but measure disability progression in 6–12 months are better suited for research applications, including differentiating disability in specific subdomains of the neurological examination [16, 17].

This study analyzes accelerometry data from the NeuFun-TS Postural Sway and Pronator Drift tests to generate digital biomarkers, assess their test–retest reliability and evaluate their correlation with gold-standard clinical outcomes and validated semiquantitative imaging biomarkers. We also explored whether aggregating reliable digital biomarkers into machine learning (ML) optimized models provide greater clinical value than the best single biomarkers from each test.

Materials and methods

Participants

This study was approved by the Institutional Review Board of the National Institutes of Health (NIH). All data were collected under protocols: Targeting Residual Activity by Precision, Biomarker-Guided Combination Therapies of Multiple Sclerosis (clinicaltrials.gov identifier NCT03109288) and Comprehensive Multimodal Analysis of Neuroimmunological Diseases of the Central Nervous System (NCT00794352). All participants signed paper or digital informed consent and provided their sex, age, height, and weight. After unblinding diagnostic categories, the cohort consisted of people with MS (n = 112), Other Inflammatory Neurological Diseases (OIND, n = 13), Non-Inflammatory Neurological Diseases (NIND, n = 21), Clinically Isolated Syndrome (CIS, n = 4), Radiologically Isolated Syndrome (RIS, n = 1) and 13 HV. Apart from 7 self-declared HV that participated in the “smartphone only substudy cohort”, the remaining 157 study subjects received full neurological and physical examinations, laboratory testing (blood and cerebrospinal fluid to make/confirm diagnosis) and brain MRI within 1–48 h of NeuFun-TS testing (Supplementary Table 1).

Clinical and imaging measurements related to postural sway and pronator drift

Each neurological examination performed by an MS-trained clinician lasted approximately 30–60 min and was documented in the NeurEx™ app [16], which automatically computes neurological disability scales and functional subdomains. Based on domain expertise, we selected NeurEx™ panel scores of neurological functions that contribute to postural sway, including “Stance & Gait” (panel 16), “Cerebellar Dysfunction” (Lower extremities subdomain of panel 12), and “Proprioceptive Dysfunction” (Lower extremities subdomain of panel 14). The square root of the sum of these scores computed the “NeurEx™ Postural Sway” subpanel. Similarly, for the Pronator Drift analysis we selected the pertinent subsystem scores separately for each hand; we derived upper extremity “Motoric Dysfunction” (sums panel 8: muscle strength, panel 10: reflexes and panel 7: spasticity), “Cerebellar Dysfunction” (panel 12 for a specific hand), and “Proprioceptive Dysfunction" (panel 14 for a specific hand). We summed these subsystem scores for both hands to compute “NeurEx™ Pronator Drift”.

Clinical grade MRI of the brain and upper cervical spinal cord (i.e., axial and sagittal cuts extended to C5 level) was performed following procedures detailed in previous papers [18, 19]. We semi-quantitatively graded the extent of atrophy and number of focal lesions (“lesion load”) separately in the brainstem, cerebellum, and medulla/upper cervical spinal cord using a previously published grading protocol; these measurements have proven to be important in determining physical disability [18, 19].

Data were collected by investigators blinded to other measurements, uploaded to the research database each week following patient visits, quality controlled during weekly meetings, and locked from subsequent data modifications.

NeuFun-TS tests description

NeuFun-TS tests were developed using Kotlin and Java within Android Studio. NeuFun-TS is distributed as an Android package and test results are uploaded to a private database hosted on Google Firebase. Results are linked to an alphanumeric code to maintain privacy. The test operates on Android (Versions 11, 12) and displays graphics optimized for Google Pixel XL/2XL.

NeuFun-TS test subjects are provided with a Google Pixel smartphone that has an attached hand strap; they also receive an Auro Lounger Universal Adjustable Neck Mount (phone harness) to be used for the Postural Sway test. For each test in the app suite, when the user selects the test’s icon (i.e. “Postural Sway” icon), the app guides the user through trial completion via automated instructions.

A Postural Sway (Fig. 1A) “trial” is three 10-s upright balance tests, in which the user will stand as still as they can with their hands relaxed at their sides: first, standing with the eyes open and feet apart (EO-FA); second, standing with the eyes open and feet together (EO-FT); finally, standing with eyes closed and feet together (EC-FT).

Fig. 1

NeuFun-TS Postural Sway and Pronator Drift user experience walkthrough. A Demonstration of the Postural Sway eyes closed and feet together test, with the smartphone mounted to the provided Auro Harness. B NeuFun-TS Postural Sway app experience. The NeuFun-TS allows users to practice tests, access help tutorials, visualize their history, and submit feedback regarding application bugs. The app currently contains fifteen different tests, which can be accessed in Practice Mode or Trial Mode (shown here). The Postural Sway interface provides both visual and auditory instructions to complete a trial. Upon receiving all instructions, the user may start the trial. The first Postural Sway test evaluates the user’s balance while standing with their feet comfortably apart and their eyes open. After the test is complete, the user’s test movements are plotted to a screen for user feedback, and the user will repeat with their feet together and eyes open and with their feet together and eyes closed. C Demonstration of a user performing the right-handed portion of the Pronator Drift test, using the attached phone strap. D NeuFun-TS Pronator Drift app overview. The Pronator Drift interface similarly provides visual and verbal guidance for trial completion. Upon receiving all instructions, the user may begin the test. The first Pronator Drift test evaluates the stability of the left hand. After the test is complete, the user’s test movements are plotted to a screen for user feedback. The user will repeat with the right hand

A Pronator Drift (Fig. 1B) “trial” is two 10-s pronator drift tests (one per hand). The user will stand/sit as still as they can with their arms extended forward, palms facing upward, eyes closed, and one hand gripping the phone (strap optional).

A supervising lab member was present during NeuFun-TS testing to answer any questions regarding testing procedure and to ensure subject safety. Each test collects approximately 9.5 s of data using the Google Pixel built-in tri-axial accelerometer at a sampling frequency of 50 Hz. Time-series were trimmed to 9-s for consistency among comparisons.

Computing digital biomarkers

Smartphone data was calibrated using an established protocol for accelerometer-based sway analyses in which each test’s 3-Dimensional time series were transformed into one Medio-Lateral (M-L) and one Antero-Posterior (A-P) time series [20]. Additionally, M-L and A-P time series were combined into a single radial acceleration time series, referred to as “Net” acceleration in downstream analyses.

Two time-related and two frequency-related measurements of postural sway and pronator drift were computed based upon review of previous analyses [9,10,11, 21] (Fig. 2).

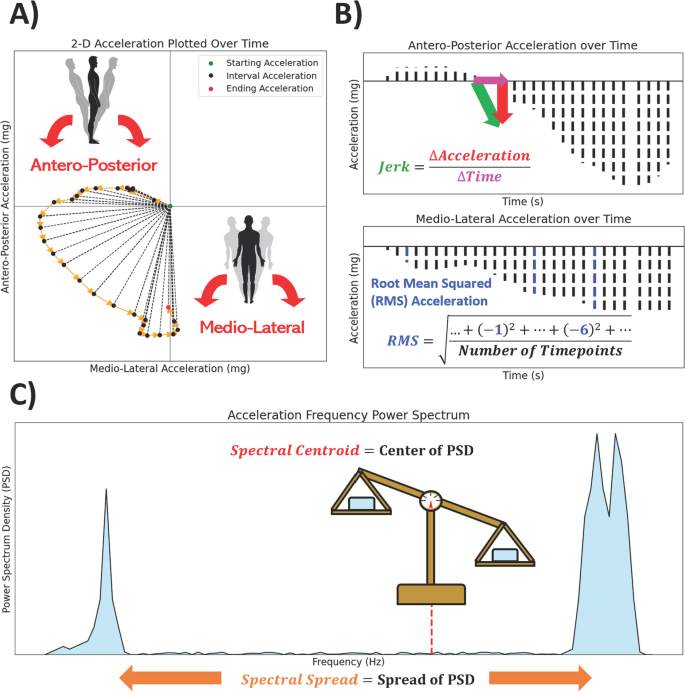

Fig. 2

Visualization of measurements used in the Postural Sway and Pronator Drift analysis. A Manually generated example of 2-Dimensional acceleration data plotted over 0.6 s. Each test’s accelerometry data was converted to Antero-Posterior (“A-P”, front-to-back) and Medio-Lateral (“M-L”, left-to-right) acceleration data. B Display of the M-L component of the 2D acceleration data and provides a visualization of Jerk, which captures the rate of change of acceleration with respect to time, or “sway jerkiness”. C Display of the Antero-Posterior (A-P) component of the 2D acceleration data and a visualization of Root Mean Squared acceleration (RMS), which captures the magnitude of the sway over the course of a test. D Display of frequency-related measurements after transformation of acceleration data. Spectral Centroid captures the central Power Spectrum Density (PSD) of the Power Spectrum, while the Spectral Spread captures extent of deviation of the PSD’s distribution

Time-related measurements include the following:

1) Root Mean Square of acceleration (RMS), which measures acceleration magnitude. RMS was calculated from the M-L, A-P, and Net acceleration time series as

$$\text{RMS} = \sqrt{{\frac{1}{N}\Sigma }_{i = 1}^{N}{a}_{i}^{2}}$$

where a_i is instantaneous acceleration and N is the number of timepoints.

2) Sway jerkiness (Jerk) measures the rate of change in acceleration with respect to time. Jerk was calculated from the M-L and A-P acceleration time series as

$$\text{Jerk}={\int }_{0}^{t}{\left(\frac{dAcc}{dt}\right)}^{2}dt$$

where t is time and Acc is the M-L or A-P acceleration time series. Net Jerk was.

calculated using both M-L and A-P acceleration time series (AccML and AccAP, respectively) as

$$\text{Net Jerk}=\frac{1}{2}{\int }_{0}^{t}\left({\left(\frac{dAccML}{dt}\right)}^{2}+{\left(\frac{dAccAP}{dt}\right)}^{2}\right)dt$$

Next, acceleration data were discrete Fourier transformed ²¹ to frequency power spectrums, which captures frequency (Hz) against Power Spectral Density (PSD). From the power spectrums we computed the first two spectral moments μ₁ and μ₂, respectively, as our frequency-related measurements:

1. Spectral centroid (SC), which measures the “center of gravity” of the sway frequency (the central PSD-weighted frequency) [21]. SC was calculated from each transformed M-L, A-P, and Net time series as

$$SC= {\mu }_{1} = \frac{{\Sigma }_{k = {b}_{1}}^{{b}_{2}}{f}_{k}{s}_{k} }{{\Sigma }_{{k = b}_{1}}^{{b}_{2}}{s}_{k}}$$

where ${b}_{1}$ and ${b}_{2}$ are the band edges of the frequency samples, ${f}_{k}$ is the k^th sample frequency, and ${s}_{k}$ is the k^th spectral density.

2. Spectral spread (SS), which measures the variability and dispersion of sway frequency. Following the same notation, SS was calculated from each transformed M-L, A-P, and Net time series as

$$SS= {\mu }_{2} = \sqrt{\frac{{\Sigma }_{k = {b}_{1}}^{{b}_{2}}{{({f}_{k}-{\mu }_{1})}^{2}s}_{k} }{{\Sigma }_{{k = b}_{1}}^{{b}_{2}}{s}_{k}}}$$

For Postural Sway, each measurement was computed for each stance (EO-FA, EO-FT, EC-FT); differences between testing conditions were evaluated by computing each measurement’s ratio for EC-FT:EO-FT (the Romberg Ratio; measures how removing visual stimulus affects sway) and EO-FT:EO-FA (measures how increasing stance difficulty affects sway).

For Pronator Drift, Net measurements were computed for each hand, which were later relabeled as dominant (“Dom.”) or non-dominant (“Ndom.") based on subject-identified hand-dominance. Because people with severe disability were holding the phone in the most comfortable manner (strapped sideways or held vertically), we were unable to identify directional movements. We also computed the sums and differences for measurements across dominant and non-dominant hands (“Sum” and “Diff.”), respectively.

Altogether, the different permutations of the four measurements yielded 60 Postural Sway digital biomarkers and 16 Pronator Drift digital biomarkers. All biomarkers were log₁₀ transformed to improve their distribution normality. Subjects with neurological exam data were randomly split into a training set (80% of subjects) and an independent validation set (20%) before all data analyses.

Test–retest reliability and outlier removal

We evaluated inter-day test–retest reliability of derived digital biomarkers by computing the Intraclass Correlation Coefficient (ICC) for subjects’ first two trials that were supervised in-clinic. We also gave subjects the option of taking a Google Pixel smartphone home to complete additional unsupervised testing; as a sensitivity analysis, we evaluated intra-test reliability across testing conditions by computing the ICC for subjects’ first in-clinic trial and closest-by-date at-home test to evaluate NeuFun-TS reliability in real-world environments.

The ICC compares test–retest variance within subjects with the variance between subjects; high ICC indicates that a biomarker is stable over repeated measures. We computed the ICC (2,1) [22, 23], or the 2-way mixed-effects model, which measures reliability of the first 2 trials of each subject and treats trial number as a rater. Following published guidelines, we used an ICC of 0.5 as a cutoff to remove features with poor test–retest reliability [24]. To assure that downstream analyses are not affected by outliers, we identified outlier biomarker values as those above or below 1.5 times the interquartile range of reliable features.

Predictive model training and validation

Digitalized tests enable computation of large numbers of digital biomarkers, which can be aggregated into ML models that may outperform individual biomarkers in predicting outcomes. However, ML models can overfit, leading to unrealistically optimistic results. We performed the following steps to mitigate model overfitting:

• 1) To limit the number of model features, we only included digital biomarkers with ICC > 0.5 and correlations with at least one relevant clinical/imaging outcome.

• 2) To improve model interpretability, we used linear regression models. We selected 3 modeling strategies that differ in level of collinearity stringency to account for redundancy among biomarkers: Ridge regression broadly applies moderate shrinkage to all colinear features (least aggressive); Lasso regression aggressively shrinks redundant features’ coefficients to zero (most aggressive); Elastic Net regression roughly mediates Ridge and Lasso in coefficient optimization.

• 3) Using fivefold cross-validation, we optimized each model strategy’s hyperparameters (i.e., alpha, which is the hyperparameter for Lasso regression, must be increased or decreased to optimize how much the feature coefficients are penalized). Fivefold cross-validation is a model-training strategy that randomly splits the training cohort into five equal parts called “folds”; four folds (80% of training data) are used to train the model and tune hyperparameters, while the remaining fold (20%) serves as a validation set to evaluate model performance. Each of the five folds serves as a validation fold once, yielding five optimization simulations.

• 4) For each model strategy, we computed a corresponding component-based model through Principal Component Analysis (PCA).

• 5) We selected the best model strategy for each outcome by using the coefficient of determination (R²).

• 6) We trained winning models on the complete training cohort and evaluated model performance on the independent validation cohort.

• 7) We compared model performance in the independent validation cohort with the best single predictor to validate that aggregating biomarkers provides added value over the best single digital biomarker.

We also combined digital biomarkers from both tests and performed steps 1–6 to evaluate how multiple tests model the global disability scales.

Results

Digital biomarkers demonstrate moderate inter-day test reproducibility

As detailed in Materials and Methods, we removed biomarkers with ICC below 0.5 as unreliable. From the Postural Sway test, 9 of 60 biomarkers presented moderate reliability (Supplementary Fig. 1A). Only two biomarkers, both measuring sway acceleration magnitude, achieved ICC > 0.5 for the two open eyes postural sway tests: A-P RMS, which captures acceleration magnitude in A-P directions, and “Net RMS”, which integrates acceleration magnitude from A-P and M-L directions. Surprisingly, for the most difficult test (eyes closed, feet together; EC-FT), in addition to RMS biomarkers, M-L Jerk and Net Jerk achieved ICC > 0.5. In fact, ICC for M-L RMS EC-FT was much higher (i.e., 0.695) than that of A-P RMS (i.e., 0.535–0.566 for all 3 stances). This suggests that vision controls postural sway in M-L directions much more effectively than in A-P directions and eliminating this visual correction increases test sensitivity. For Pronator Drift (Supplementary Fig. 1B), 5 digital biomarkers achieved ICC > 0.5. Again, RMS exhibited stronger reproducibility than acceleration jerk, but only for the dominant hand.

As a sensitivity analysis, we evaluated if features deemed reliable in-clinic maintained reliability in unsupervised, at-home environment by computing the ICC for the subjects’ first in-clinic trial and closest-by-date at-home trial. For 10 Postural Sway subjects with at-home testing data (5 RR-MS, 2 SP-MS, 2 PP-MS, 1 HV), the A-P RMS EC-FT and Net RMS EC-FT yielded statistically significant, moderate reliability, aligning with in-clinic reliability findings (Supplementary Fig. 2A). For 11 Pronator Drift subjects (5 RR-MS, 4 SP-MS, 2 PP-MS), all three Jerk features, encompassing the dominant hand, non-dominant hand, and sum from both hands, yielded moderate to good reliability (Supplementary Fig. 2B).

Postural sway digital biomarkers correlate with age

Previous postural sway research has identified in healthy subjects a positive correlation between accelerometry-derived measurements and age [25]. Some research has also indicated correlations are present between height, weight, and sex [26, 27]. For each diagnosis type with at least 10 subjects, we computed correlations between the reliable features and age, sex, height, and weight. Net RMS EC-FT demonstrated the strongest correlation in HV, and was the only biomarker to correlate with age in all cohorts with 10 or more subjects (Fig. 3A). Net RMS EC-FT explained 67% and 57% of variance in HV and NIND cohorts, respectively (p < 0.001), with almost identical slopes and intercepts. This indicates that Net RMS EC-FT measures age-related increase in postural sway. Other postural sway biomarkers correlated with age and one pronator drift biomarker correlated with sex, although sex distribution was limited (Supplementary Fig. 3).

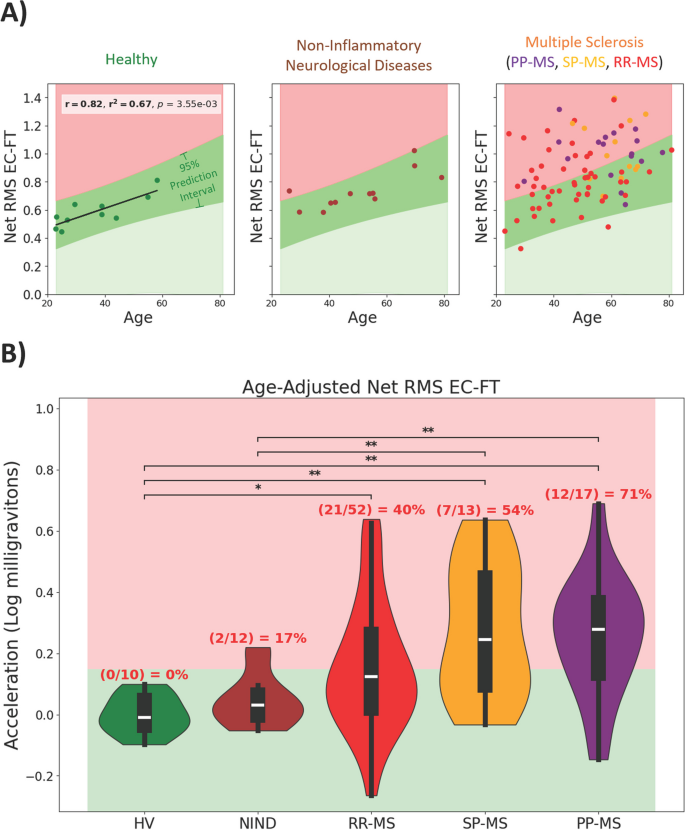

Fig. 3

Age exhibits differentiable relationship among cohorts’ sway amplitude measurements. A Net RMS EC-FT (Net sway amplitude for Eyes Closed and Feet Together) significantly correlated with age in every diagnosis cohort with at least 10 subjects (HV, NIND, and MS). Pearson’s (r) correlations and their p-values (p) were adjusted using the Benjamini–Hochberg False Discovery Rate adjustment with alpha = .05. B Age-adjusted Net RMS EC-FT prediction interval identifies abnormal digital biomarker results corresponding to MS-related disability. The 95% prediction interval was calculated from the Healthy Volunteer (HV) cohort and was used to identify abnormal Net RMS EC-FT in subjects with Multiple Sclerosis (MS), Non-Inflammatory Neurological Diseases (NIND), Relapsing–Remitting MS (RR-MS), Secondary-Progressive MS (SP-MS), and Primary-Progressive MS (PP-MS). The Wilcoxon Rank-Sum nonparametric test of difference was performed pairwise among all diagnostic groups using Benjamini Hochberg False Discovery Rate corrections (alpha = 0.05) to adjust p-values; * corresponds to significant differences with p-value <= 0.05, ** corresponds to p-value <= 0.01

After subtracting the effect of natural aging (i.e., using Net RMS EC-FT HV age residuals), we observed that Net RMS EC-FT differentiates MS patients from HV and NIND controls (Fig. 3B). 17% of NIND subjects, 40% of RRMS, 54% of SPMS and 71% of PPMS patients measured Net RMS EC-FT beyond the effect of natural aging. Thus, Net RMS EC-FT also differentiates MS-related increase in postural sway from natural aging.

Postural sway digital biomarkers correlate more strongly with relevant clinical and imaging outcomes than pronator drift biomarkers

Next, we aimed to select the most clinically relevant digital biomarkers for modeling. Because biomarker-derived models must be blindly tested in the independent validation cohort, we only used training cohort data for biomarker selection (Supplementary Tables 2, 3).

We computed Pearson correlations between reliable Postural Sway and Pronator Drift features and 3 global neurological disability scales (EDSS: ordinal, from 0–10; CombiWISE: ML-derived, continuous, from 0–100; NeurEx™: derived from NeurEx™ App, continuous linear scale, theoretical maximum of 1347). Because postural sway and pronator drift tests measure subdomains of neurological examination, we also evaluated biomarker correlations with relevant subpanels, detailed in Materials in Methods, of the aforementioned global scales (Fig. 4).

Fig. 4

Digital biomarkers exhibit low to moderately strong Pearson correlations with clinical scores and MRI scores. A Postural Sway features exhibit significant, moderate Pearson correlations. B Pronator Drift features exhibit significant, low Pearson correlations with clinical scores and MRI scores. Correlation p-values were adjusted using the Benjamini–Hochberg False Discovery Rate adjustment with alpha = .05. RMS refers to root mean squared acceleration, which captures sway amplitude; Jerk refers to the rate of change of acceleration, which captures sway jerkiness. A-P refers to antero-posterior movement, which captures forward and backward sway; M-L refers to medio-lateral movement, which captures side-to-sway sway; Net combines M-L and A-P acceleration data to capture overall acceleration. “Dys.” is short for “Dysfunction”, “Fun.” is short for “Function”. Benjamini Hochberg False Discovery Rate corrections (alpha = 0.05) were used to adjust p-values; * corresponds to significant differences with p-value <= 0.05, ** corresponds to p-value <= 0.01

All postural sway digital biomarkers correlated moderately strongly (r > 0.5, p < 0.001) with at least one clinical outcome. We observed a hierarchy in Pearson’s correlations with global disability scales: correlations were weakest with EDSS (r = 0.39–0.57, p < 0.001), stronger with NeurEx (r = 0.42–0.63, p < 0.001) and strongest with CombiWISE (r = 0.46–0.65, p < 0.001). As expected, most digital biomarkers correlated comparatively stronger with subpanels of global disability scales, such as the stance and gait subpanel (r = 0.52–0.61, p < 0.001) or NeurEx™ Postural Sway (r = 0.48–0.64, p < 0.001). EC-FT biomarkers correlated stronger with the proprioception subpanel (r = 0.41–0.47, p < 0.001) than eyes open (EO-FA, EO-FT) biomarkers (r = 0.24–0.27, p < 0.05). This indicates that vision can largely compensate for the effect of decreased proprioception.

Additionally, all postural sway digital biomarkers correlated moderately with semi-quantitative imaging outcomes in the infratentorial compartment (Fig. 4A), although these correlations were slightly weaker (r = 0.34–0.58) compared to correlations with clinical outcomes (r = 0.35–0.65). Generally, all 3 infratentorial sites (brainstem, cerebellum and medulla/upper cervical spine) contributed to these correlations. The infratentorial scores that integrate atrophy of all infratentorial anatomical regions correlated stronger with digital biomarkers than atrophy of each individual Central Nervous System anatomical site (r = 0.34–0.58 vs r = 0.14–0.51). Likewise, scores that aggregated both lesion load and atrophy correlated stronger (r = 0.26–0.58) compared to semiquantitative atrophy scores only (r = 0.14–0.56).

Net RMS EC-FT outperformed all digital biomarkers in correlations with clinical and imaging outcomes with the exception of correlations with cerebellar subpanels that correlated strongest with A-P RMS EO-FT stance, consistent with clinical knowledge that vision does not compensate for cerebellar dysfunction in postural sway.

Pronator Drift biomarkers exhibited comparatively weaker correlations overall. Within pronator drift biomarkers, Jerk correlated weaker than RMS (r = −0.05 to 0.29, p < 0.01 vs r = 0.11–0.43, p < 0.001). Surprisingly, biomarkers did not correlate with motoric and proprioceptive subpanels but only with cerebellar subpanels (up to r = 0.43, p < 0.001). Because NeurEx™ Pronator Drift integrates motoric, proprioceptive and cerebellar dysfunction, the subpanel also did not correlate with any digital biomarker. The best biomarker from Pronator Drift was Net RMS Dom., which correlated with all global disability scales and demonstrated the same hierarchy we observed for postural sway biomarkers: EDSS < NeurEx < CombiWISE (r = 0.40–0.43, p < 0.001). RMS Dom. also correlated with all imaging outcomes (r = 0.32–0.42, p < 0.001).

Development and validation of digital biomarker models

We sought to predict 3 global scales of neurological disability (EDSS, CombiWISE, NeurEx™) and 2 test-specific scales (NeurEx™ Postural Sway, NeurEx™ Pronator Drift) using model strategies that accounted for multicollinearity among digital biomarkers (Supplementary Fig. 4). However, because pronator drift digital biomarkers did not correlate with NeurEx™ Pronator Drift, we instead used them to model NeurEx™ Cerebellar Dysfunction Dom., which these biomarkers correlated with (Fig. 4B), as a sensitivity analysis.

After optimizing model parameters and ensuring that models performed comparably to principal component models (Supplementary Figs. 5–7), we selected the best model type (Ridge, Lasso, or Elastic Net) using the coefficient of determination (R²). We trained these models on the complete training cohort (Supplementary Figs. 8–10) and tested them in the independent validation cohort (Fig. 5; Supplementary Figs. 11–12). Pearson’s correlation (r), the coefficient of determination, and the concordance correlation coefficient (CCC) were used as model performance metrics.

Fig. 5

Performance metrics of single best predictors and best models in independent validation cohort. Pearson’s (r) correlation, the coefficient of determination (R²), and the concordance correlation coefficient (CCC) were used as metrics of model success. A The best single predictor for the NeurEx™ Postural Sway subpanel was Net RMS EC-FT, which achieves higher prediction and correlation coefficients than the best model assembled from all postural sway biomarkers. B The best model assembled from all pronator drift biomarkers outperformed the best single predictor for pronator drift Net RMS Dom. in predicting the NeurEx.™ Cerebellar Dysfunction subpanel for the dominant hand. C Combining biomarkers from the postural sway and pronator drift tests yields models that predict global scales of disability better than the postural sway or pronator drift test alone. RMS refers to root mean squared acceleration, which captures sway amplitude. Net combines Medio-Lateral and Antero-Posterior acceleration data to capture overall acceleration. “Dom.” is short for “Dominant hand”

First, we evaluated the ability of test-specific models (i.e., models derived from Postural Sway biomarkers) to predict test-specific outcomes (i.e., NeurEx™ Postural Sway); we compared these models with the best single predictors for each model outcome. Surprisingly, for predicting NeurEx™ Postural Sway, we found that the best single predictor achieved greater model performance metrics than the best Postural Sway model (r = 0.70, R² = 0.46, CCC = 0.71 versus r = 0.64, R² = 0.32, CCC = 0.66, respectively; Fig. 5A). For Pronator Drift modeling we found that the best Pronator Drift model outperformed the best single predictor in predicting cerebellar dysfunction in the validation cohort (r = 0.55, R² = 0.25, CCC = 0.33 versus r = 0.50, R² = 0.21, CCC = 0.31, respectively; Fig. 5B).

Next, we evaluated whether models that combine Postural Sway and Pronator Drift biomarkers outperform the best test-specific models in predicting global disability scales. Indeed, combined models achieved the highest performance metrics for EDSS, CombiWISE, and NeurEx™ (r = 0.58–0.65, R² = 0.31–0.36, CCC = 0.58–0.66), indicating that accurately measuring global disability requires integrating biomarkers from multiple functional tests (Fig. 5C; Supplementary Figs. 11–12).

Discussion

Key findings

Analysis of the simple, 1-min NeuFun-TS Postural Sway test yielded a digital biomarker (Net RMS EC-FT) with moderately strong test–retest reproducibility – both across testing days in the clinic and testing supervised and unsupervised conditions – meaningful correlations with age (even in HV), and predictive power for disability scores. This biomarker’s correlation with age aligns with previous studies that suggest age-related degeneration in proprioception and delayed motoric integration contributes to increased postural instability in older adults [28, 29]. Our findings further previous research by uncovering how healthy subjects and subjects with non-inflammatory neurological diseases exhibit a nearly identical progression of disability with age, while subjects with progressive forms of MS (Secondary and Primary Progressive) followed steeper slopes. This identified MS-specific contributions to postural sway dysfunction. Notably, Net RMS EC-FT, which had the highest test–retest reliability, outperformed postural sway models that incorporated some less reliable biomarkers; establishing reliability of digital biomarkers is essential to functional test analyses.

Moreover, while the NeuFun-TS Pronator Drift test also yielded moderately reliable digital biomarkers, the biomarkers correlated weaker with clinical outcomes. Nevertheless, these weaker biomarkers provided additional predictive value when we combined them with postural sway biomarkers to predict global scales of neurological disability. This highlights the importance of having functional tests that cover different (ideally all) neurological subsystems in the NeuFun-TS in order to capture development of global neurological disability.

As a whole, the NeuFun-TS distinguishes itself from previous smartphone implementations of the neurological examination. Its more comprehensive assessment of nervous system functionality, validation with an independent and diverse patient cohort, and quantification of neurological disability with neurologist-derived clinical scales are all unique, but necessary components to achieving a personalized, clinically-useful tool. Additionally, our reliability testing, both within the clinic and with unsupervised settings, are critical steps to ensuring that lab findings translate to real-world conditions.

Future directions

While the goal of NeuFun-TS is measuring all neurological subsystems, the time required to perform all tests determines NeuFun-TS usability and, consequently, testing compliance. Therefore, NeuFun-TS must balance test accuracy (may require longer testing times) and usability (requires short testing). With this in mind, we will remove Pronator Drift from NeuFun-TS, because the test is only sensitive for cerebellar dysfunction, which is already measured with greater accuracy in another NeuFun-TS test [17]. Likewise, Postural Sway EO-FA position did not yield any non-redundant digital biomarkers. Thus, we will explore whether abandoning this position and increasing time for EO-FT, which is sensitive to cerebellar dysfunction, and EC-FT, which provides the best digital biomarker of Postural Sway, may enhance reliability of these clinically meaningful biomarkers.

We will continue to validate the remaining NeuFun-TS tests. All validated NeuFun-TS tests are available to non-commercial academic entities free of charge through the NIH licensing process. While we ultimately envision an application that enables remote neurological evaluation for the general public, the limited size and resources available to our research group prevents us from achieving storage of such large quantities of data and maintenance of the smartphones’ compatibility with operating systems. However, by validating the effectiveness of the NeuFun-TS against the gold-standard of neurological examination and imaging outcomes, we effectively “de-risk” such a project for commercial entities. Thus, the goal of the NeuFun-TS is proof-of-concept that optimization and integration of digital neurological function tests can strongly approximate the neurological examination and reliably measure progression of neurological disability. We believe the natural evolution in medicine will lead to phones or wearable devices with Apps that can reliably measure neurological functions, both actively (such as NeuFun-TS) and passively (such as Apple Watch/iPhone).

Potential limitations

One limitation of the postural sway test, as previously mentioned, was that the distance between the feet for the feet apart stance was not controlled between subjects; however, because this position did not provide useful biomarkers we will be removing it from the NeuFun-TS. One potential limitation of the pronator drift test was that orientation of the smartphone was not controlled, which prevented directional movements from being captured. However, signal interference from hand tremors and the inability of the digital biomarkers to discern pronation/drift in most subjects means that accelerometers would likely fail to capture directional movements regardless. For both tests, the small cohort size for evaluating reliability across supervised and unsupervised conditions likely contributed to the limited number of significant p-values among the previously identified clinically reliable features. Finally, some diagnostic groups (i.e. RIS) lacked sufficient numbers to perform statistical tests of group differences. However, the primary goal of NeuFun-TS and this study is to quantify neurological dysfunction as disability exists on a spectrum, even in healthy individuals; therefore, the primary concern was recruiting an overall cohort representative of a wide range of neurological disability, not balancing individual diagnostic groups.

Conclusion

The user-friendly, 1-min NeuFun-TS Postural Sway test exhibits meaningful correlations with age and clinician scores reflecting balance. Assembling models from different NeuFun-TS tests yields models better able to predict clinical outcomes.
