Deep medullary vein abnormalities impact white matter hyperintensity volume through increases in interstitial free water
BMC Neurology volume 24, Article number: 405 (2024)
Abstract
Background
Our intent was to explore the mediating role of interstitial free water (FW) linking deep medullary vein (DMV) score to white matter hyperintensity (WMH) volume.
Methods
Our research team conducted a forward-looking analysis of initial clinical and imaging information gathered from 125 patients with cerebral small vessel disease. We identified six anatomic DMV regions on susceptibility weighted imaging (SWI) studies. Each region earned a score of 0–3, determined by the visual conditions of vessels, summing all six to generate a DMV score. We utilized fluid-attenuated inversion recovery (FLAIR) sequences to measure the volume of WMH. Additionally, we employed diffusion tensor imaging (DTI) to assess FW value.
Results
DMV score significantly positively correlated with FW value and with WMH volume (p < 0.05), and value of FW positively correlated with WMH volume (p < 0.05). The indirect effect of DMV score on WMH volume was mediated by FW (β = 0.281, 95% confidence interval [CI]: 0.178–0.388), whether adjusted for age and gender (β = 0.142, 95% CI: 0.058–0.240) or for age, gender and vascular risk factors (β = 0.141, 95% CI: 0.054–0.249).
Conclusion
DMV score correlate with WMH volume by virtue of FW increases in white matter.
Introduction
White matter hyperintensity (WMH) is important imaging markers of cerebral small vessel disease, typically seen as patchy rarefaction on fluid-attenuated inversion recovery (FLAIR) sequences [1]. Studies have shown that such occurrences and their progression are associated with various neurologic disorders, particularly cognitive impairment and stroke [2, 3]. The pathogenesis of WMH is a complex process closely related to white matter damage, involving inflammatory factor release and abnormal blood-brain barrier function [4, 5]. Some study outcomes also suggest that dysfunction within the venous system may be pivotal in WMH emergence and progression [6].
Deep medullary vein (DMV) are primarily situated around the lateral ventricles, where they are aligned perpendicularly and appear as vertical bands of hypointense signals on susceptibility weighted imaging (SWI) [7]. These vessels serve to drain venous blood from periventricular and corona radiata regions into the deep cerebral venous system [8]. Recent data has revealed an association between diminished DMV visibility on SWI images and higher WMH burden [9], implicating DMV dysfunction as an important dynamic in the onset and evolution of WMH. However, the specific pathways entailed remain unclear. Previous research indicates that DMV narrowing due to venous collagen deposition may cause venous outflow obstruction, thus increasing interstitial fluid content [10]. The latter may lead to disruption of white matter fiber tracts and ineffective clearance of harmful metabolites, culminating in WMH. We hypothesize that DMV dysfunction exacerbates white matter damage by increasing interstitial fluid content.
Therefore, we used diffusion tensor imaging (DTI) to gauge free water (FW) value, reflecting interstitial fluid content of the brain. We also determined DMV score as DMV functional indices. Our objective was to explore the interrelations between DMV score, FW value, and WMH volume.
Materials and methods
Patient population
Clinical and imaging data were collected from 125 individuals with cerebral small vessel disease between March and September 2023. Inclusion criteria were as follows: (1) Be over 40 years of age; (2) magnetic resonance imaging (MRI) studies adhering to Standards for Reporting Vascular Changes on Neuroimaging guidelines; (3) at least one vascular risk factors, such as tobacco use, diabetes, high blood pressure, or abnormal blood lipid levels. The following were grounds for exclusion: (1) incomplete medical clinical data; (2) Presence of secondary demyelinating lesions (e.g., those caused by metabolic issues, toxins, or infections); (3) Other brain-related conditions such as tumors, physical injuries, bleeding within the brain, acute infarctions, etc.; (4): exhibit significant artifacts that could interfere with the accurate assessment of DMVs.
Magnetic resonance imaging protocol
All patients underwent multimodal MRI studies, including 3D T1- (T1WI) and T2-weighted (T2WI) imaging, FLAIR sequences, SWI, and DTI, using a 1.5 Tesla scanner (MAGNETOM Aera, Syngo Platform VD13A; Siemens Healthcare, Erlangen, Germany) equipped with an eight-channel phased-array head coil. Parameters for FLAIR were as follows: repetition time = 6500 ms; echo time = 95 ms; flip angle = 140°; slice thickness = 5 mm; intersection gap = 1.5 mm; field of view = 23 × 23 cm2; and matrix = 256 × 256. For SWI, parameters were the following: repetition time = 54 ms; echo time = 40 ms; flip angle = 15°; slice thickness = 2 mm; intersection gap = 0.4 mm; field of view = 23 × 23 cm2; and matrix = 256 × 256. DTI parameters were as follows: repetition time = 3600 ms; echo time = 95 ms; field of view = 23 × 23 cm2; matrix = 128 × 128; diffusion directions = 30; and b values = 0, 1,000, and 2,000 s/mm2.
Deep medullary vein score

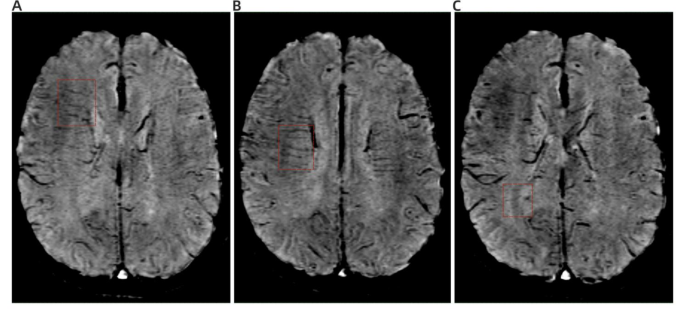

During the image review process, two experienced neuroradiologists independently evaluated DMV score. Scoring of DMV was done on SWI sequences, selecting five consecutive slices at level of lateral ventricles (within basal ganglia) until the ventricles disappeared. Most of DMV were thereby included. We then divided the slices into frontal, parietal, and occipital lobes bilaterally, for a total of six anatomic regions [11] (Fig. 1). Each region was scored from 0 to 3, based on DMV signal continuity: 0, signals continuous, clear, and uniform; 1, signals still continuous but uneven; 2, weak, punctate, and discontinuous signals; or 3, no DMV signals. The DMV score (range, 0–18) was generated by adding score of all six regions. (Fig. 2).
White matter hyperintensity volume
We measured WMH volume quantitatively on FLAIR images. These images were first converted to the Neuroimaging Informatics Technology Initiative (NIfTI) format using MRIcron software, which is available at https://www.nitrc.org/projects/mricron. The skulls had been stripped from images using the FSL BET function. After matching of 3D T1WI and FLAIR images, we obtained WMH volume using the FSL BIANCA function. All processed images were subjected to neuroradiologic review and manual correction, aided by ITK-SNAP software (http://itksnap.org).
FW in white matter
DTI images were first preprocessed, which largely entailed denoising, artifact removal, and correcting echo planar imaging distortion. Next, we mapped extracellular FW using DIPY software (https://dipy.org) in a FW elimination two-compartmental model [12]. 3D T1WI images were further registered as b = 0 (b0) images, and mean white matter FW value was ultimately calculated from each patient’s white matter mask, segmented through FSL FAST using co-registered 3D T1WI images. FW value ranged from 0 to 1, corresponding with higher extracellular FW content as value increased.
Data analysis
In our statistical analysis, we represented categorical variables as percentages. For continuous variables, we used mean ± standard deviation for normally distributed data, and median with interquartile ranges (IQRs) for non-parametric data. To analyze interrelations of DMV score, FW value, and WMH volume, the Spearman correlation coefficient was applied. We conducted all statistical analyses using SPSS version 26, setting significance at p < 0.05. The PROCESS macro [Model 4, a simple mediation effect model where an independent variable (predictor) influences a dependent variable (outcome variable) through a mediator; https://afhayes.com] was also engaged to analyze the mediating effect of FW on DMV score and WMH volume (Fig. 3). In Model 1, predictor, mediator, and outcome variables were DMV score, FW, and WMH volume, respectively. We adjusted for age and gender in Model 2, whereas Model 3 was adjusted for age, gender, hypertension, diabetes and hyperlipidemia.
Results
Baseline clinical and imaging characteristics of the study population (N = 125) are shown in Table 1. There were 58 women (46.4%), and mean age was 60 ± 11 years. Median DMV score was 3 (IQR: 1–8), mean WMH volume was 12.26 ± 12.63 ml, and mean FW value was 0.24 ± 0.01.
Inter-reader agreement for evaluation of deep medullary vein score
DMV scoring was independently performed by two neuroradiologists blinded to clinical and imaging data. The inter-reader intraclass correlation coefficients (ICCs) for the DMV score was 0.91.
DMV score and FW
Spearman correlation analysis indicated a positive correlation between DMV score and FW (r = 0.570; p < 0.001) (Fig. 4A). DMV score correlated significantly with FW in all test environments (Model 1: β = 0.610; Model 2, adjusted for age and gender : β = 0.405; Model 3, adjusted for age, gender and hypertension/diabetes/hyperlipidemia: β = 0.401) (all p < 0.05).
FW score and WMH volume
Spearman correlation analysis likewise showed a positive correlation between FW and WMH volume (r = 0.565; p < 0.001) (Fig. 4B). Again, DMV score regularly correlated with FW (Model 1: β = 0.460; Model 2, adjusted for age and gender: β = 0.351; Model 3, adjusted for age, gender and hypertension/diabetes/hyperlipidemia: β = 0.351) (all p < 0.05).
DMV score and WMH volume
Spearman correlation analysis revealed a positive correlation between FW and WMH volume (r = 0.473; p < 0.001) (Fig. 4C), higher DMV score correlating with higher WMH volume.
Mediation analysis of DMV score, FW, and WMH volume
The indirect effect of DMV score on WMH volume was clearly mediated by FW in our analyses of Model 1 (β = 0.281, 95% confidence interval [CI]: 0.178–0.388); Model 2, adjusted for age and gender(β = 0.142, 95% CI: 0.058–0.240); and Model 3, adjusted for age, gender, hypertension, diabetes and hyperlipidemia (β = 0.141, 95% CI: 0.054-0.249) (Table 2).
Discussion
Outcomes of the present study confirm a relation between DMV score and WMH volume that is mediated by value of FW. This mediating effect is independent of age, gender, hypertension, diabetes and hyperlipidemia, indicating a link between DMV dysfunction, increased interstitial FW content, and increased WMH volume.
SWI is an MRI imaging technology that is particularly sensitive to paramagnetic materials. The concentration of paramagnetic deoxyhemoglobin in human venous blood is high, allowing clear delineation of veins on SWI studies. Veins with smooth walls, unobstructed drainage, and high flow rates are clearly and continuously displayed by SWI. Otherwise, signaling may be discontinuous or even disappear. SWI is thus a proven mode for venous hemodynamic status assessment [13].
Diminished visibility of DMV on SWI sequences reflects luminal narrowing due to collagen deposition within venous walls [14]. As a result, there is increased vascular permeability, releasing more lytic material into the interstitium. Prolonged narrowing also leads to elevated venous pressure so that drainage of venous blood and interstitial fluid is impaired. Abnormally accumulating interstitial fluid subsequently tends to coalesce in perivascular spaces, producing interstitial edema. Furthermore, such increases in interstitial fluid hinder effective clearance of harmful metabolic substances (i.e., amyloid-β protein and plasma proteins) [15, 16]. These harmful metabolites are toxic to myelin and axons, inflicting neuronal damage but also triggering neuroinflammatory responses and thereby exacerbating interstitial fluid accumulation in the brain [17]. Interstitial edema appears as hyperintense signal on FLAIR sequences. The higher the venous pressure, the more severe interstitial edema becomes, resulting in broader areas of hyperintensity and consequently greater WMH volume.
Cerebral blood supply ordinarily is stable and non-pulsatile, maintained through a balance in cerebrospinal fluid production and cerebral venous drainage [18]. However, vascular regulation declines with age and is increasingly marked by blood flow fluctuations. Prolonged fluctuations gradually raise pressures within DMVs, reducing blood flow. The resultant vasogenic edema and increased extracellular fluid [19] subsequently promote collagen deposition in venous walls, prompting a vicious cycle of DMV luminal narrowing and venous pressure elevation.
Although prior studies of WMH volume have shown associations with age and vascular risk factors [20, 21], significance was consistently demonstrated in our mediation analyses, which adjusted for age, hypertension, diabetes and hyperlipidemia. This affirms the reliability of our data and suggests that increased interstitial fluid secondary to DMV dysfunction may precede the onset of WMH.
There are several study limitations to concede. First, this patient population was drawn from a single center only. Going forward, we intend to acquire a larger sampling for our research through multicenter recruitment. Perfusion images were also lacking and would be useful to clarify the association between WMH perfusion and DMV dysfunction. Finally, the infeasibility of long-term follow-up during this particular investigation afforded no real understanding of the dynamic DMV changes involved.
Conclusions
Our analysis has revealed a significant relationship between DMV visibility and WMH volume. Importantly, this association appears to be mediated by the amount of FW present in white matter. This observation implicates venous-side pathogenic mechanisms in the WMH evolutionary process.
Data availability
No datasets were generated or analysed during the current study.
Abbreviations
- FW:
-
Free water
- DMV:
-
Deep medullary vein
- WMH:
-
White matter hyperintensity
- FLAIR:
-
Fluid attenuated inversion recovery
- DTI:
-
Diffusion tensor imaging
- SWI:
-
Susceptibility-weighted imaging
- MRI:
-
Magnetic resonance imaging
References
Garnier-Crussard A, Bougacha S, Wirth M, Dautricourt S, Sherif S, Landeau B, et al. White matter hyperintensity topography in Alzheimer’s disease and links to cognition. Alzheimers Dement. 2022;18(3):422–33. https://doiorg.publicaciones.saludcastillayleon.es/10.1002/alz.12410.
Wang J, Zhou Y, He Y, Li Q, Zhang W, Luo ZH, et al. Impact of different white matter hyperintensities patterns on cognition: a crosssectional and longitudinal study. Neuroimage Clin. 2022;34:102978. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.nicl.2022.102978.
Havenon AD, Sheth KN, Yeatts SD, Turan TN, Prabhakaran S. White Matter hyperintensity progression is associated with incident probable dementia or mildcognitive impairment. Stroke Vasc Neurol. 2022;7(4):364–6. https://doiorg.publicaciones.saludcastillayleon.es/10.1136/svn-2021-001357.
Lin J, Wang D, Lan L, Fan Y. Multiple factors involved in the pathogenesisof white matter lesions. Biomed Res Int. 2017;2017:9372050. https://doiorg.publicaciones.saludcastillayleon.es/10.1155/2017/9372050.
Wang X, Shi Y, Chen Y, Gao Y, Wang T, Li Z, et al. Blood-brain barrier breakdown is a sensitive biomarker of Cognitive and Language Impairment inPatients with White Matter Hyperintensities. Neurol Ther. 2023;12(5):1745–58. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s40120-023-00527-z.
Liao M, Wang M, Li H, Li J, Yi M, Lan L, et al. Discontinuity of deep medullary veins in SWI is associated with deep white matter hyperintensity volume and cognitive impairment in cerebral small vessel disease. J Affect Disord. 2024;350:600–7. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.jad.2024.01.124.
Xu Z, Li F, Xing D, Song H, Chen J, Duan Y, Yang B. A Novel Imaging Biomarker for Cerebral Small Vessel Disease Associated with Cognitive Impairment: the deep-medullary- veins score. Front Aging Neurosci. 2021;13:720481. https://doiorg.publicaciones.saludcastillayleon.es/10.3389/fnagi.2021.720481.
Taoka T, Fukusumi A, Miyasaka T, Kawai H, Nakane T, Kichikawa K, et al. Structure of the medullary veins of the cerebral hemisphere and related disorders. Radiographics. 2017;37:281–97. https://doiorg.publicaciones.saludcastillayleon.es/10.1148/rg.2017160061.
Yin X, Han Y, Cao X, Zeng Y, Tang Y, Ding D, et al. Association of deep medullary veins with the neuroimaging burden of cerebral small vessel disease. Quant Imaging Med Surg. 2023;13(1):27–36. https://doiorg.publicaciones.saludcastillayleon.es/10.21037/qims-22-264.
Black S, Gao F, Bilbao J. Understanding white matter disease: imaging-pathological correlations in vascular cognitive impairment. Stroke. 2009;40:S48–52. https://doiorg.publicaciones.saludcastillayleon.es/10.1161/STROKEAHA108.537704.
Chen X, Wei L, Wang J, Shan Y, Cai W, Men X, et al. Decreased visible deep medullary veins isa novel imaging marker for cerebral small vessel disease. Neurol Sci. 2020;41(6):1497–506. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s10072-019-04203-9.
Hoy AR, Koay CG, Kecskemeti SR, Alexander AL. Optimization of a free water elimination two-compartment model for diffusion tensor imaging. NeuroImage. 2014;103:323–33. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.neuroimage.2014.09.053.
Zeng C, Chen X, Li Y, Ouyang Y, Lv F, Rumzan R, Wang Z. Cerebral vein changes in relapsing-remitting multiple sclerosis demonstrated by three dimensional enhanced T(2)-weighted angiography at 3.0T. Eur Radiol. 2013;23(3):869–78. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s00330-012-2637-5.
Moody DM, Brown WR, Challa VR, Anderson RL. Periventricular venous collagenosis: association with leukoaraiosis. Radiology. 1995;194(2):469–76.
Weller RO, Hawkes CA, Kalaria RN, Werring DJ, Carare RO. White matter changes in dementia: role of impaired drainage of interstitial fluid. Brain Pathol. 2015;25:63–78. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/bpa.12218.
Yu L, Hu X, Li H, Zhao Y. Perivascular spaces, Glymphatic System and MR. Front Neurol. 2022;13:844938. https://doiorg.publicaciones.saludcastillayleon.es/10.3389/fneur.2022.844938.
Thrippleton MJ, Backes WH, Sourbron S, Ingrisch M, van Osch MJP, Dichgans M, et al. Quantifying blood-brain barrier leakage in small vessel disease: review and consensus recommendations. Alzheimers Dement. 2019;15:840–58. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.jalz.2019.01.013.
Fulop GA, Tarantini S, Yabluchanskiy A, Molnar A, Prodan CI, Kiss T, et al. Role of age-related alterations of the cerebral venous circulation in the pathogenesis of vascular cognitive impairment. Am J Physiol Heart CircPhysiol. 2019;316(5):H1124–40. https://doiorg.publicaciones.saludcastillayleon.es/10.1152/ajpheart.00776.2018.
Kanekar SG, Zacharia T, Roller R. Imaging of stroke: part 2, pathophysiology at the molecular and cellular levels and corresponding imagingchanges. AJR Am J Roentgenol. 2012;198:63–7420. https://doiorg.publicaciones.saludcastillayleon.es/10.2214/AJR.10.7312.
Zhuang FJ, Chen Y, He WB, Cai ZY. Prevalence of white matter Hyperintensities increases with age. Neural Regen Res. 2018;13(12):2141–6. https://doiorg.publicaciones.saludcastillayleon.es/10.4103/1673-5374.241465.
Grasset L, Frison E, Helmer C, Catheline G, Chêne G. Dufouil C. Understanding the relationship between type-2 diabetes. MRI markers of neurodegeneration and small vessel disease and dementia risk: a mediation analysis. Eur J Epidemiol. 2024;39(4):409–417. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s10654-023-01080-7
